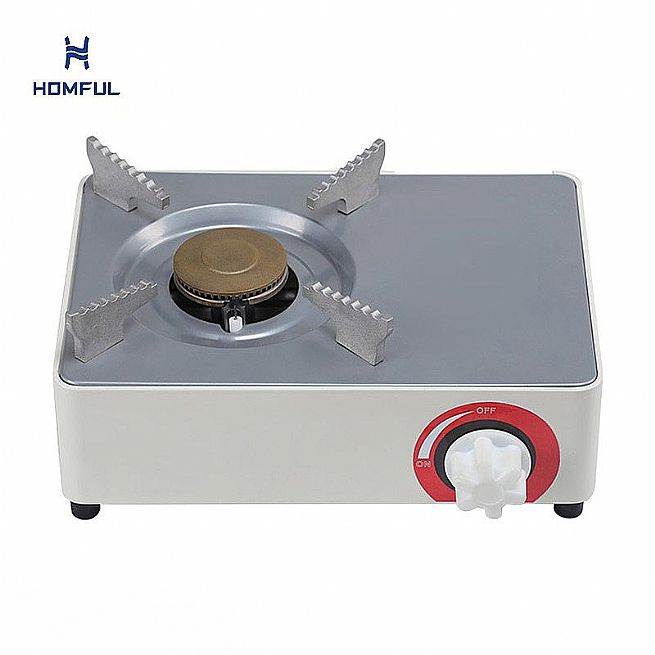

Aluminum Portable Gas Stove for Camping

Product Info

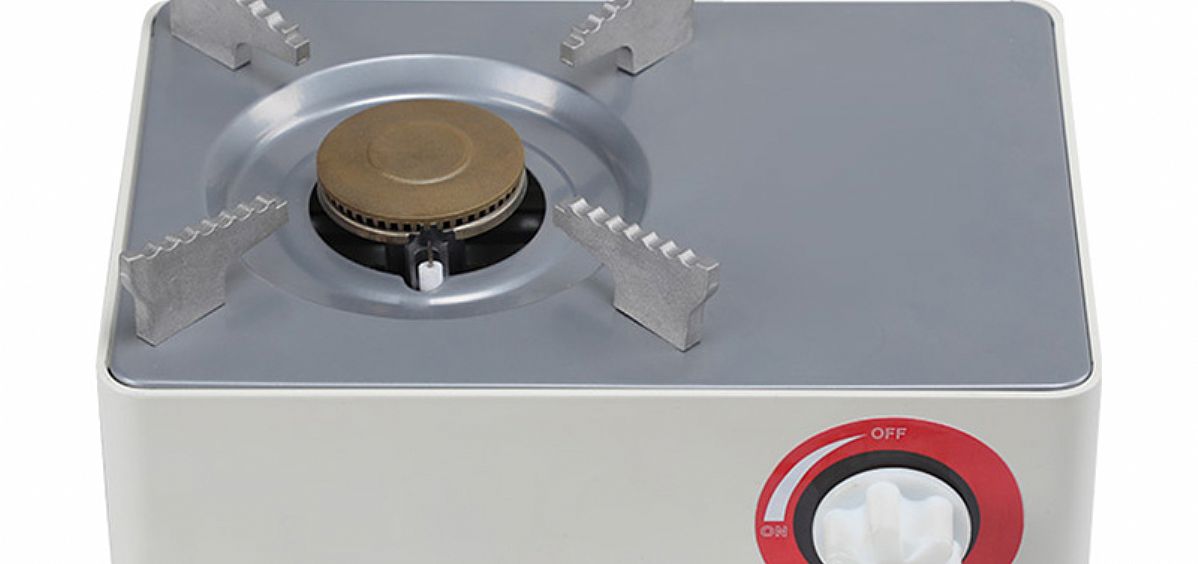

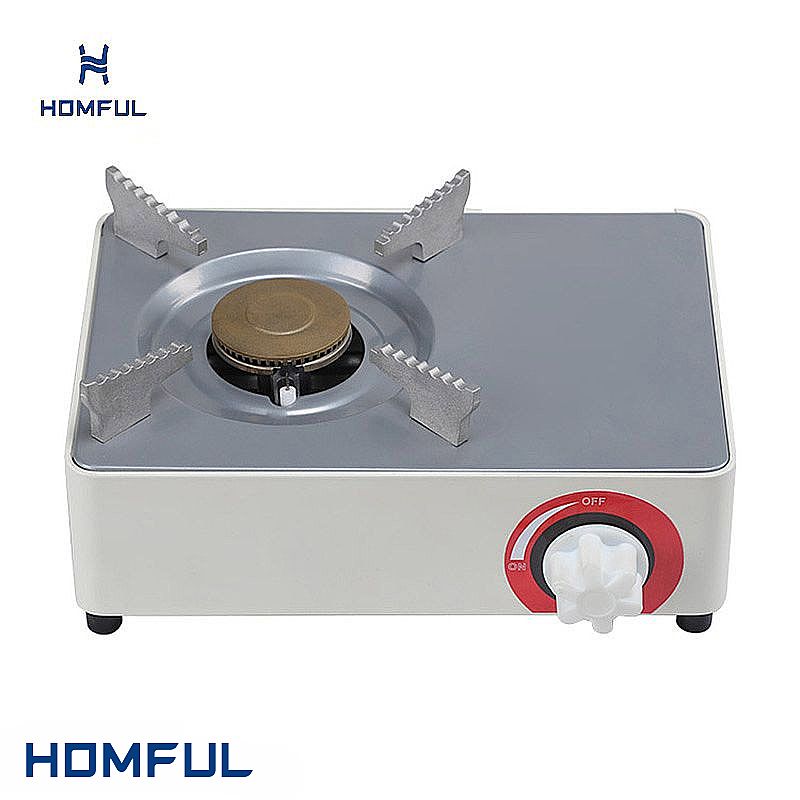

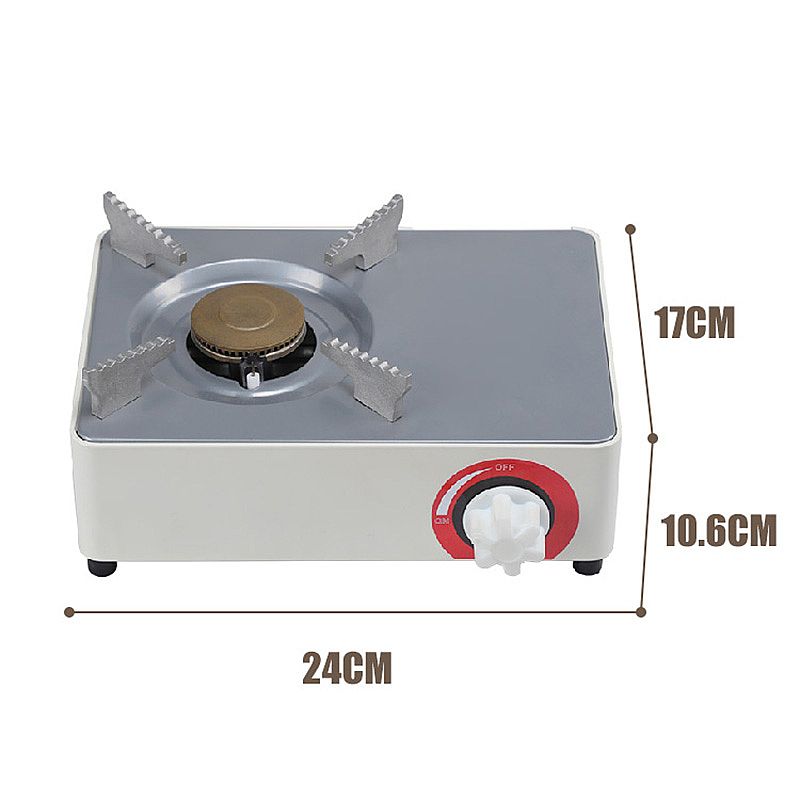

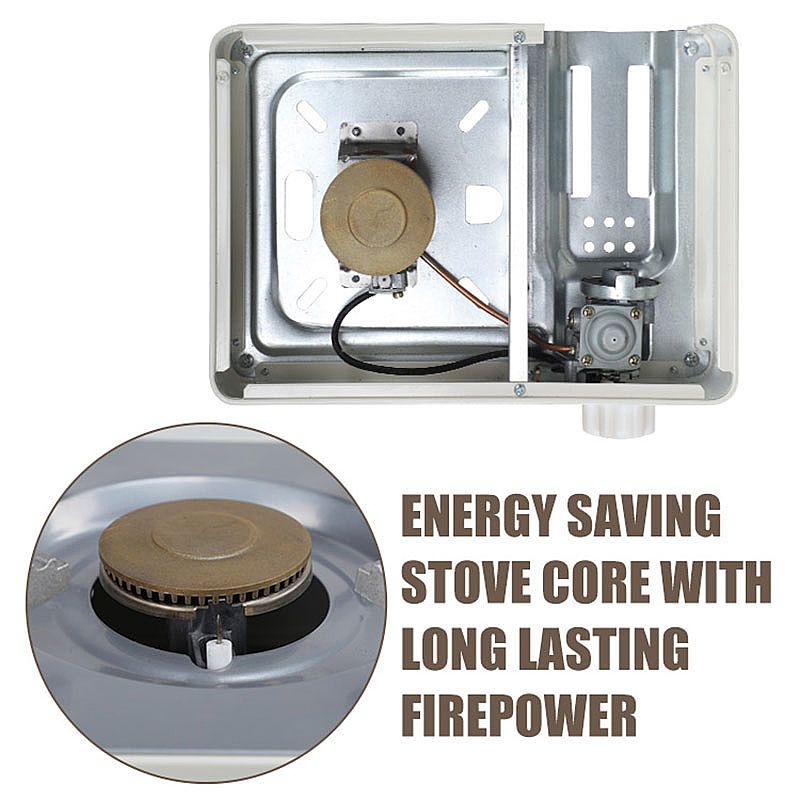

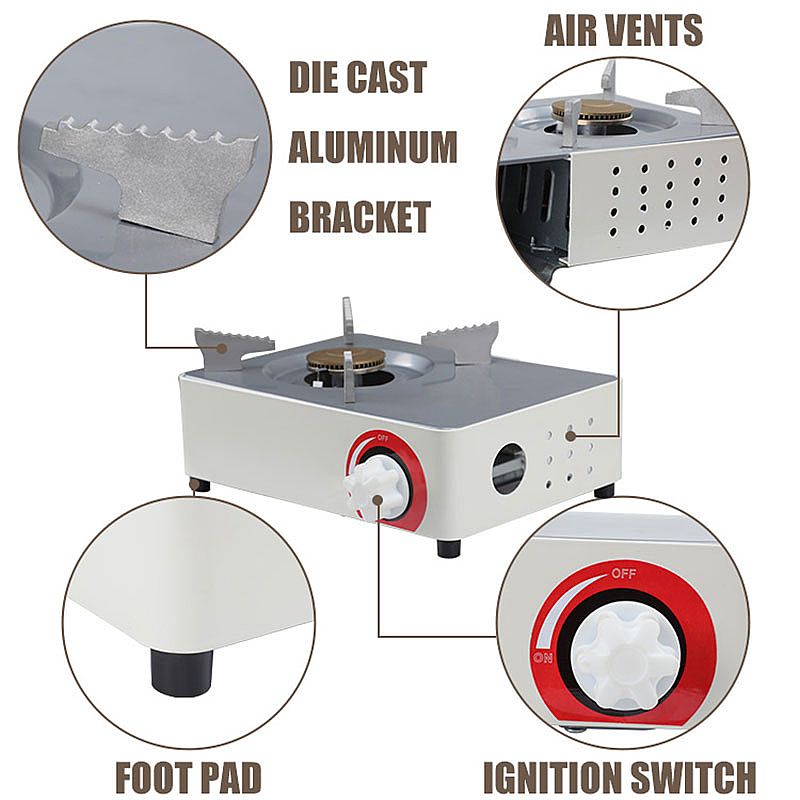

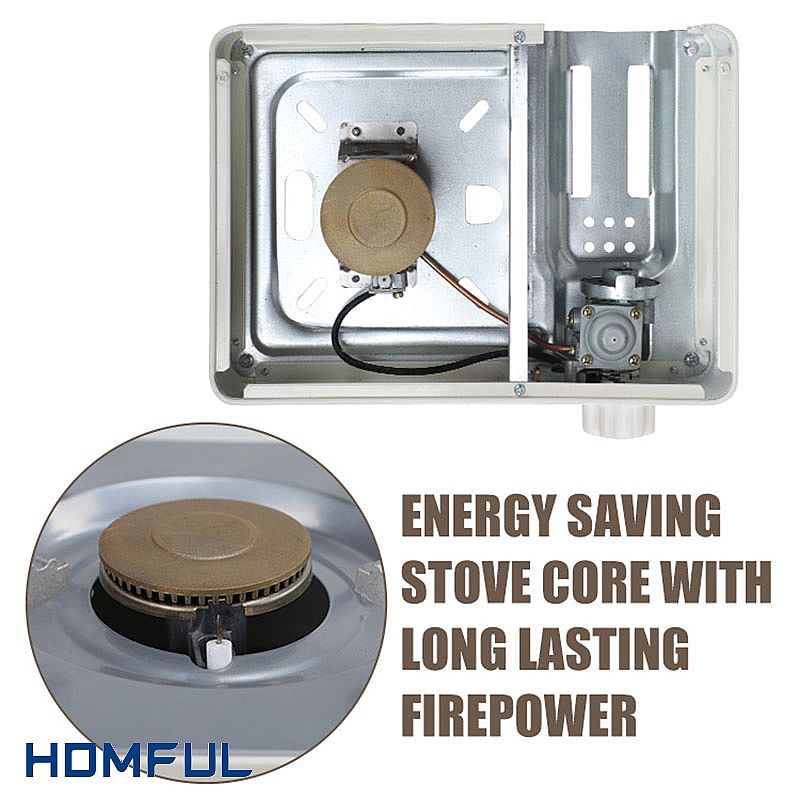

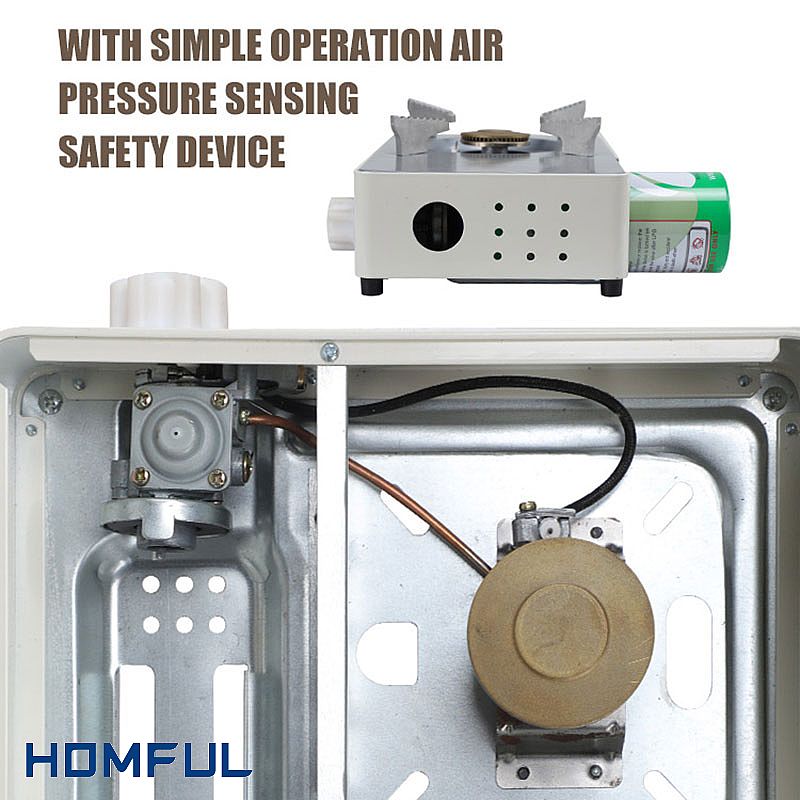

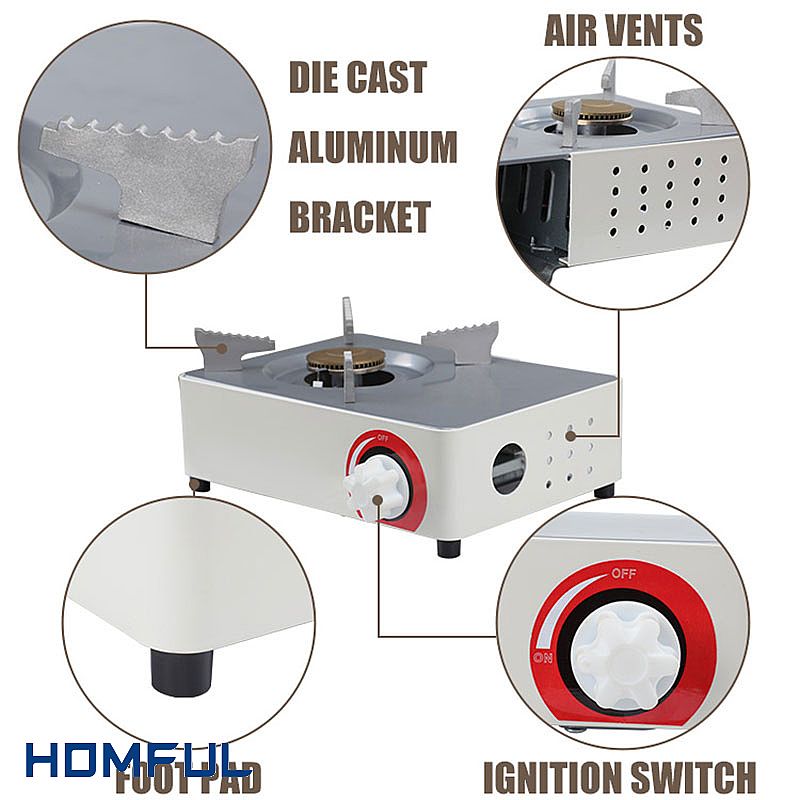

This portable gas stove has an aluminum alloy and steel body; copper, die-cast aluminum, or iron can also be specified. Standard colors are light blue, white, and green. Including the hard plastic case the unit weighs 1.2kg and measures 27x17x10.6cm, with 8pcs packed in a 45x42x34cm carton. Heat output is 21KW (1800kcal/h) with overpressure protection, and the main burner has 48 flame holes. A logo can be silk screen printed on the front panel. The stove is suited to indoor and outdoor cooking with family or a group.

Usage Method: 1. Lift the cover to open the canister compartment. 2. Align the hole in the gas canister with the locating lug, then push the canister down; if the hole and lug are not securely engaged, the canister will not seat properly. 3. Close the cover and turn the switch fully to the left until it clicks. Turn the ignition to the end; the burner is only lit correctly once a click is heard. 4. Place the cooking vessel on the pan support and adjust the flame by turning the knob to the left or right. 5. When cooking is finished, turn the knob to the right to shut off the burner.

Warning: 1. Do not throw an empty gas canister into a fire or leave it near a heat source. 2. Prevent food from boiling over into the burner. If food is spilled into the burner, wipe it off with a dry cloth; if it cannot be removed easily, clean it with soap and then wipe dry. 3. The stove must be used for cooking only. Using it for other purposes, such as drying clothes, is dangerous and may cause a fire. 4. Do not place a large pan across two stoves side by side, as this can cause overheating. 5. To prevent gas leakage, seat the canister in the tray correctly by matching the canister hole with the locating lug.

Parameters

	Aluminum Portable Gas Stove

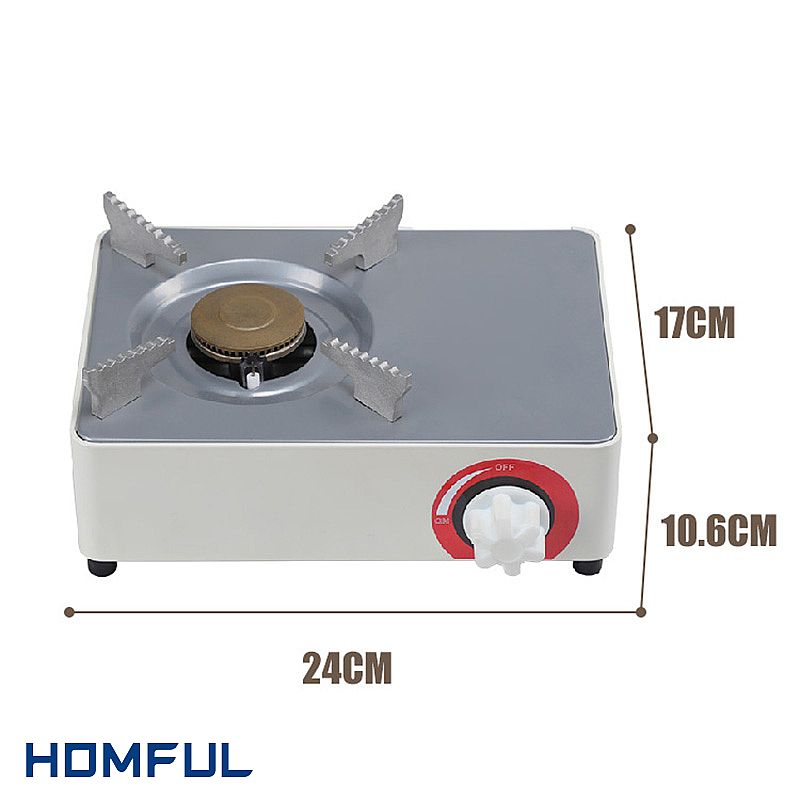

Item No.	Open Size
61C20A	21 x 17 x 10.6 CM
