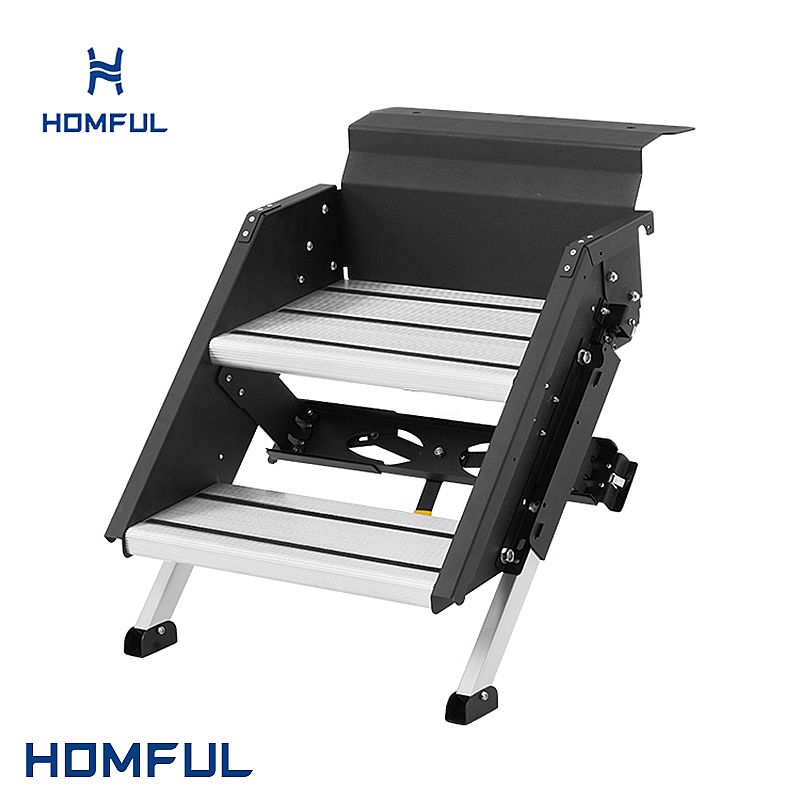

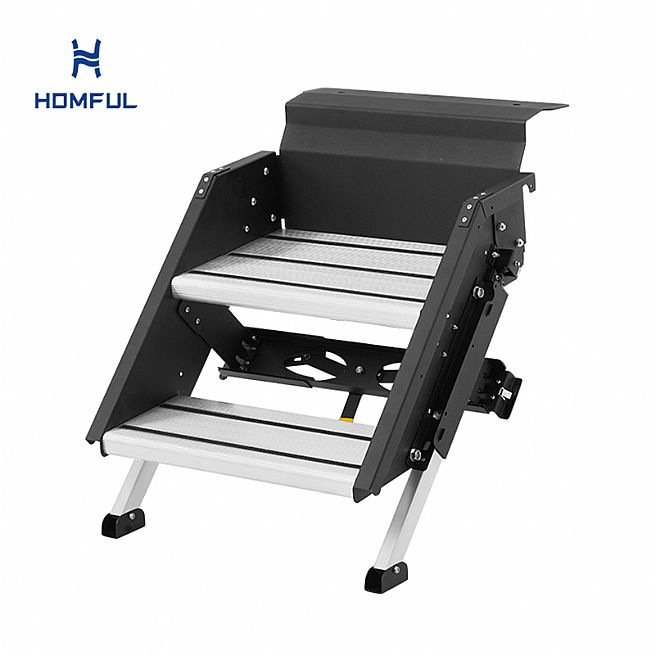

Telescopic Leg Design Aluminum RV Entry Step

Product Information

Item	Details
Model Number	71C30D
Material	Metal
Size	66x29x85cm
CTN	76x29.5x86cm

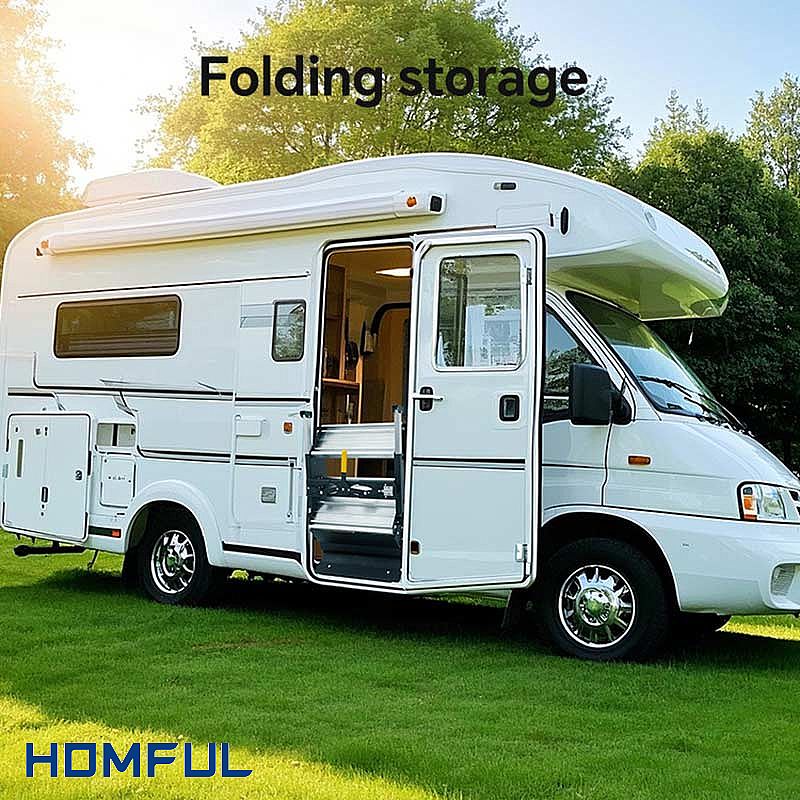

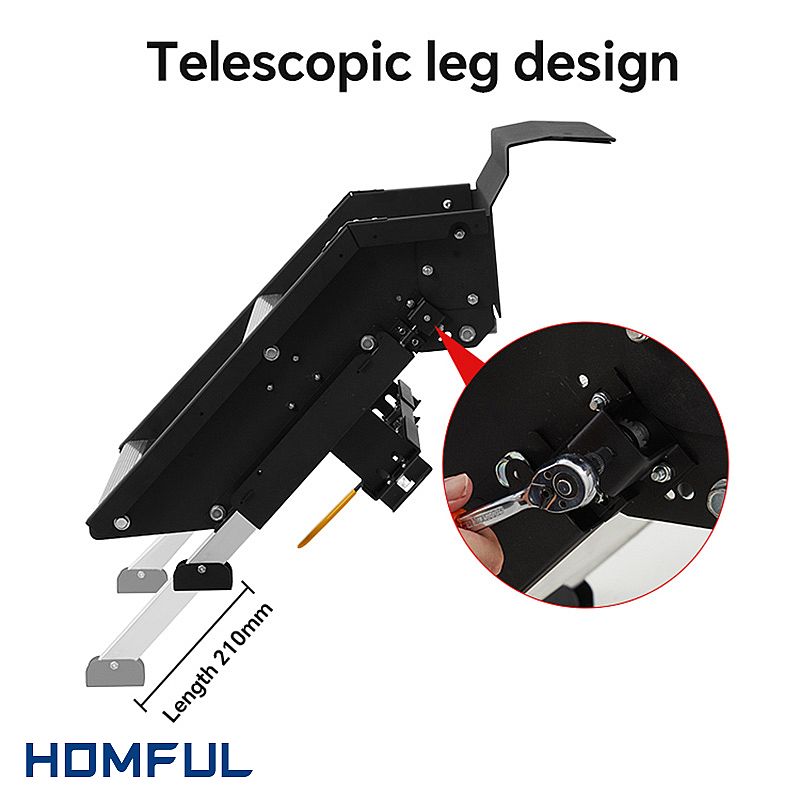

The 71C30D RV entry step provides stable access at the vehicle door. The folding design stows the step during travel, and the telescopic legs (210 mm adjustment range) set ground contact on uneven surfaces such as campsites, driveways and roadside stops. The structure is Q235 steel with a 6063 aluminum step surface for outdoor service.

Q: Is it suitable for rental fleets and frequent use?

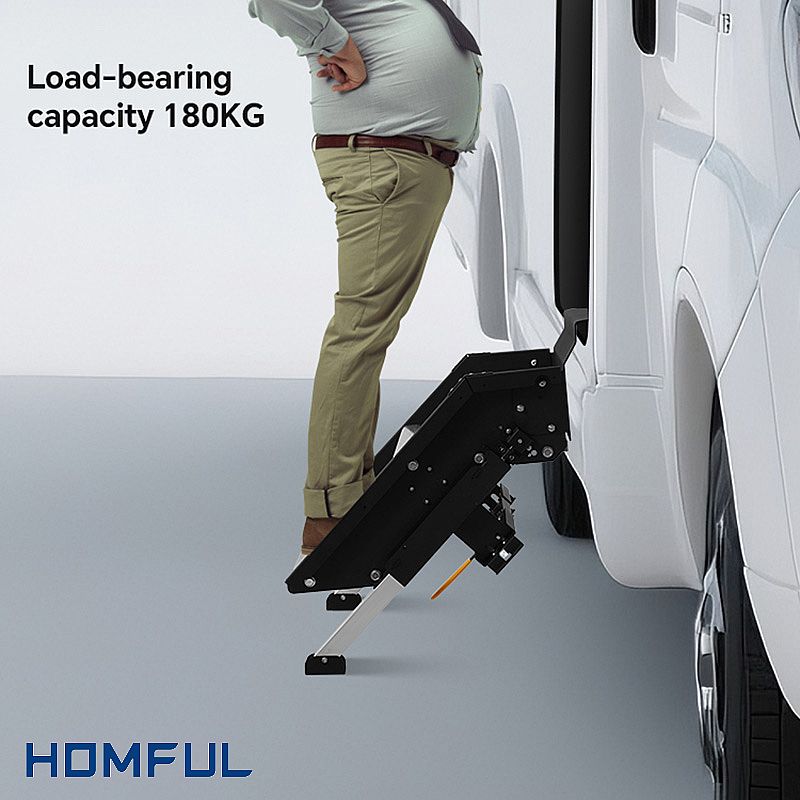

A: Rated load capacity is 180 kg, which covers frequent entry and exit cycles and mixed user groups.

Q: Does it work on uneven ground?
A: The telescopic legs are adjusted individually to level the step and reduce rocking.

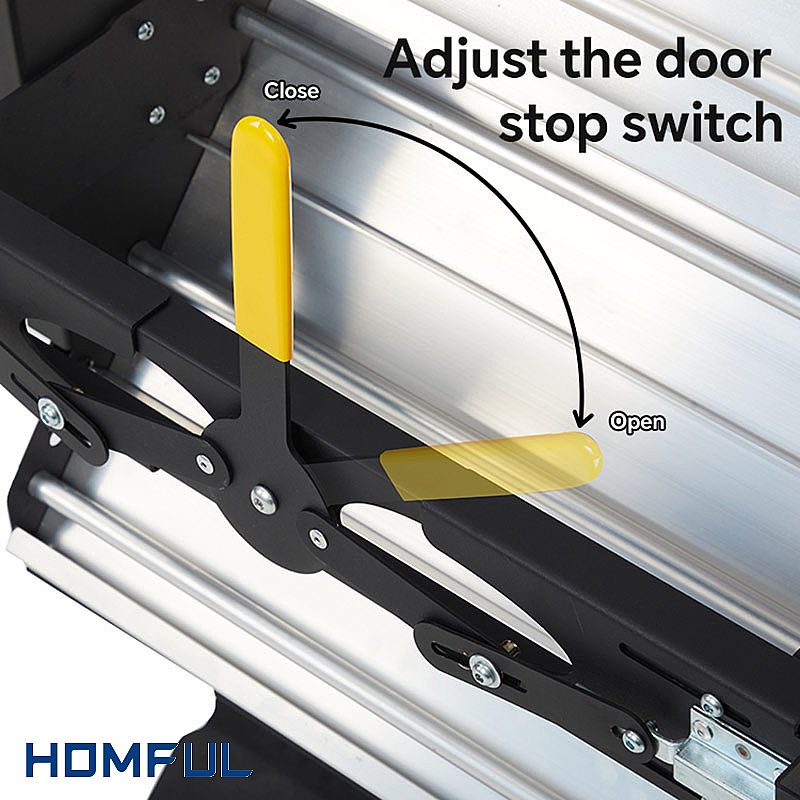

Q: How is the open and closed position controlled?
A: An integrated door stop switch holds the step in the deployed and stowed positions.

Q: What maintenance is required?
A: Rinse off sand and mud after trips, dry before long storage, check the fasteners at regular intervals and apply light lubricant to the pivot points.

Quotations, lead times and samples for evaluation are available on request.
