Product Information
| Item |
Details |
| Model Number |
71C62B |
| Compatible Vehicle |
Mercedes Sprinter NCV3/W906 (2007-2018), VS30/W907 (2019-2026) |
| Installation Position |
Left / Driver-Side Fixed Body Panel |
| Overall Size |
1403x776mm (55.24x30.55in) |
| Sliding Opening |
520x530mm |
| Mount Type |
Flush Mount / No Raised Exterior Frame |
| Material |
6063-T5 Aluminum + 4mm Automotive Tempered Glass |
| Glass Tint |
Privacy Tint, 17% VLT |
| Color |
Black |
| Window Structure |
T-Style Half Slider: Upper Fixed / Lower Sliding |
| Built-in Screen |
Removable Fiberglass Insect Screen |
| Interior Finish |
Decorative Inner Trim Ring |
| Wall Thickness |
25-40mm |
| Installation |
Automotive Urethane Bonding / Trim-Ring Screw Mount |
| Seal |
Triple-layer EPDM Seals + Drainage Channel |
| Glazing Standard |
DOT / ECE R43 |
| N.W./G.W. |
11/12.5kg |
| CTN Size |
146x9x84cm |

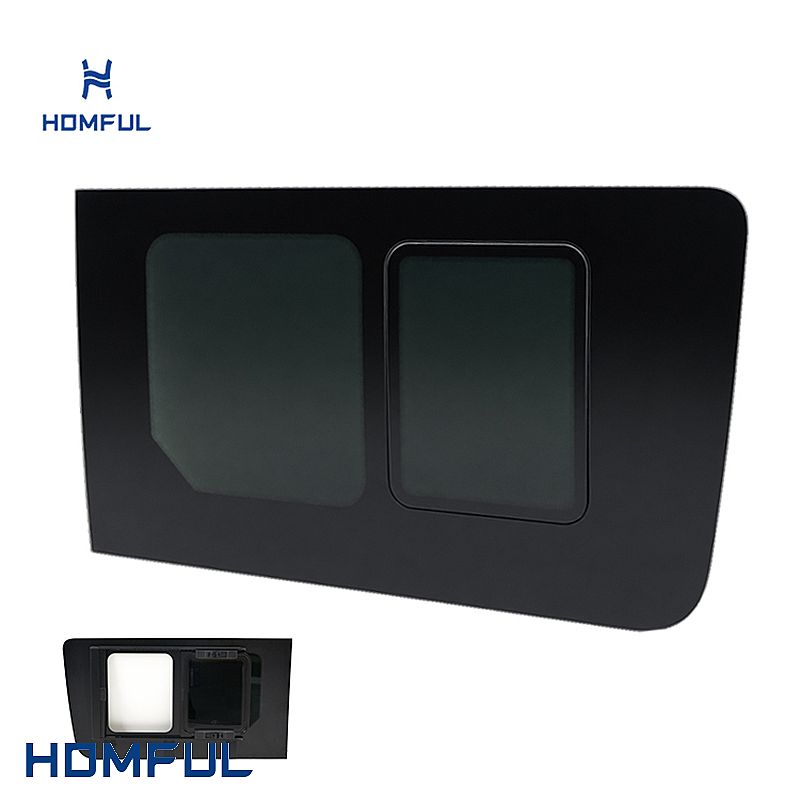

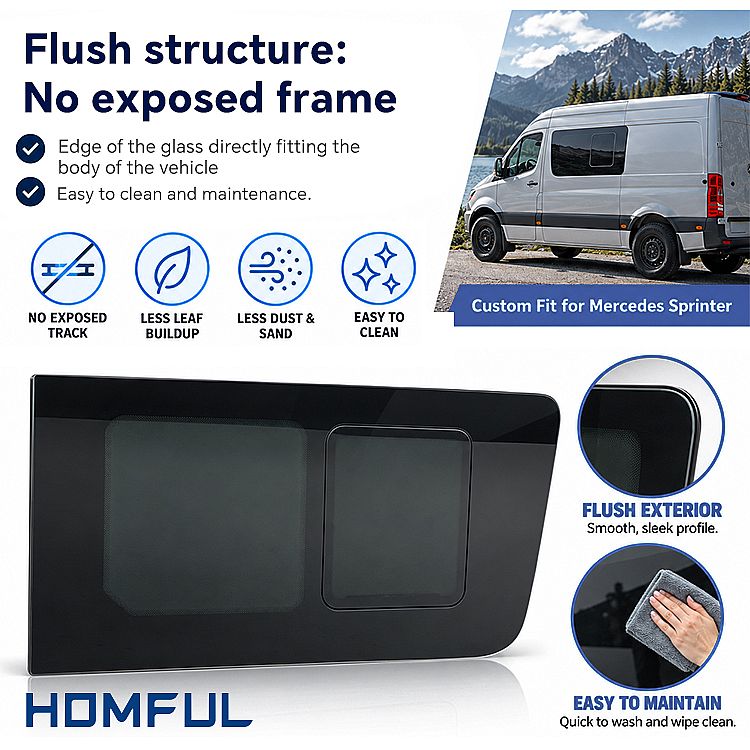

Flush-mount windows are selected when a Sprinter conversion needs ventilation without the appearance of an added exterior frame. On model 71C62B, the outer glass follows the driver-side body contour and sits level with the painted panel. The smooth surface reduces exposed grooves where road dust, leaves, and wash water can collect, and the low-profile edge creates less airflow disturbance than a raised-frame window.

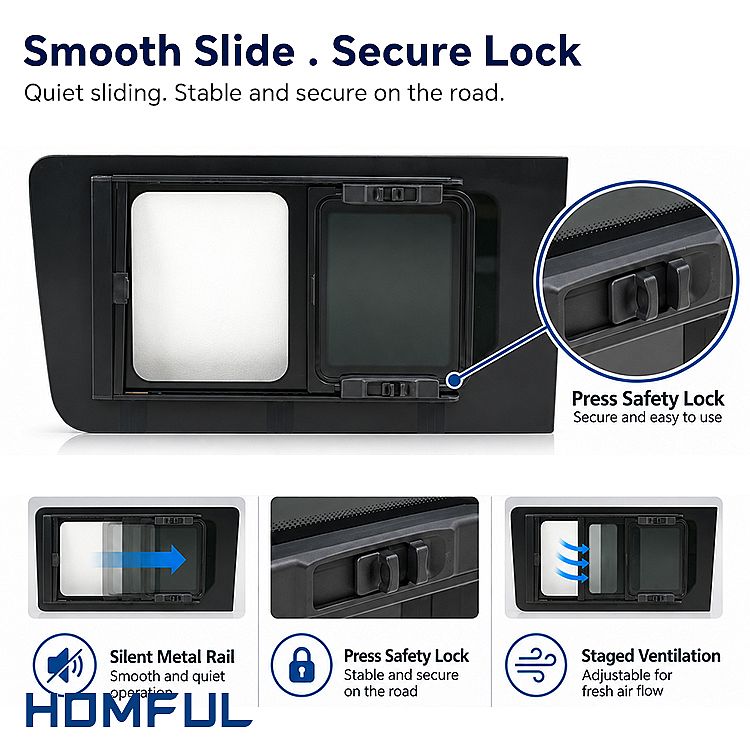

The T-style configuration uses a fixed upper pane and a horizontally sliding lower section. Users can open the slider for day-to-day airflow while the built-in fiberglass screen keeps insects outside. The screen can be removed for routine cleaning. Inside the van, a decorative trim ring covers the mounting area and gives the finished wall a neater transition.

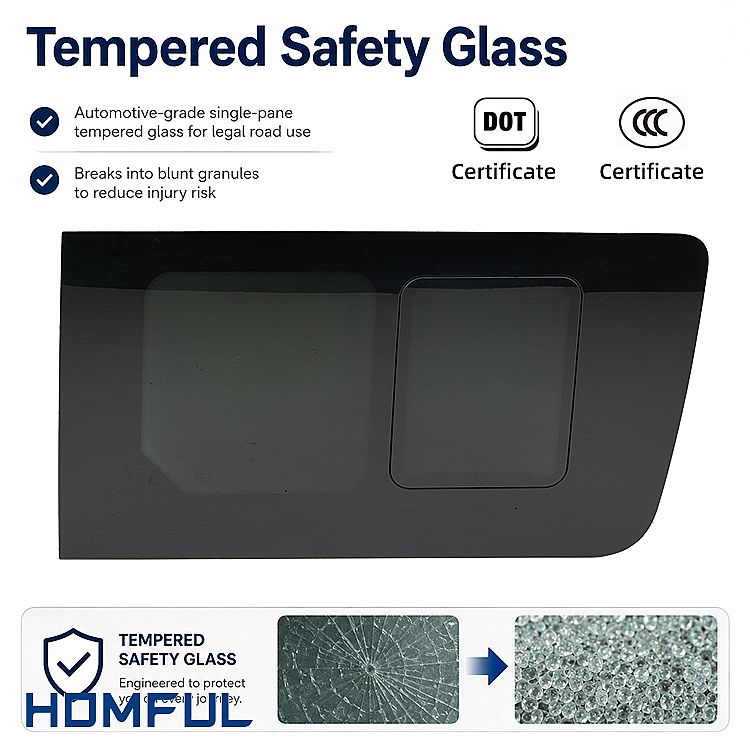

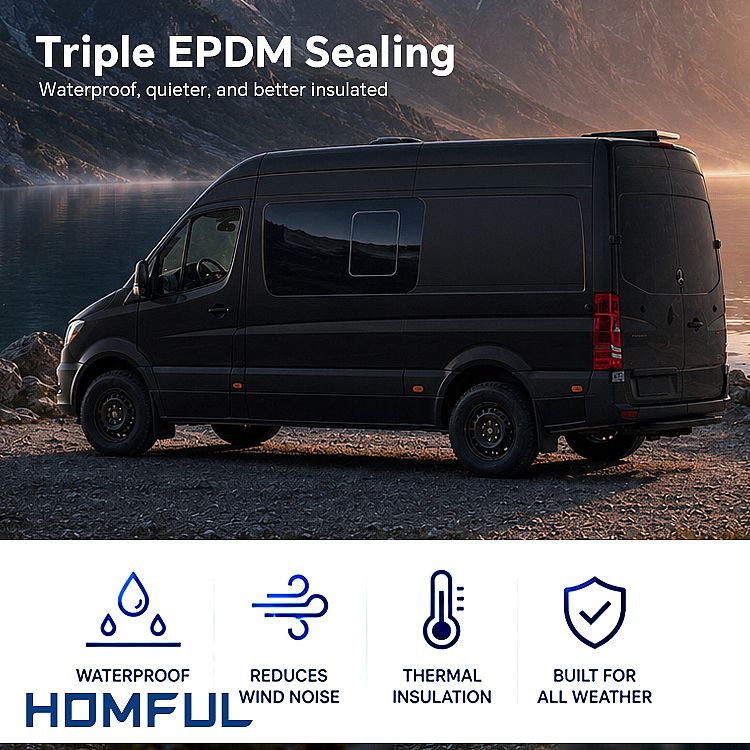

The 71C62B assembly combines 4mm tempered privacy glass with a black 6063-T5 aluminum frame, triple-layer EPDM sealing, a drainage channel, metal sliding hardware, and a press-type safety latch. The supplied product information supports urethane-bonded installation or trim-ring screw mounting. Adhesive installations require a clean surface, correct primer, and full curing time before driving.
This Sprinter driver-side window is intended only for the left fixed body panel. The profile is different from the passenger sliding-door panel, so 71C62B and 71C62A cannot be swapped. The listed fitment covers 2007-2026 NCV3/W906 and VS30/W907 models, with final confirmation required for the vehicle and cutout. Wholesale buyers can order the left and right windows as a coordinated set, with OEM customization, bulk supply, and private-label packaging available for conversion projects.
FAQ
Q: What does flush mount mean on the 71C62B window?
A: The exterior glass sits level with the vehicle body instead of using a raised outer frame or exposed sliding track. The result is a smoother, lower-profile exterior surface.
Q: Which installation position fits 71C62B?
A: Model 71C62B is for the left driver-side fixed body panel behind the front door. The window does not fit the right passenger sliding door or rear side panels.
Q: Can the left and right Sprinter windows be ordered as a set?
A: Yes. Model 71C62B can be paired with passenger-side sliding-door model 71C62A for a coordinated left-and-right conversion package.
Q: What installation methods are available?
A: The supplied product information lists automotive urethane bonding and trim-ring screw mounting. Professional preparation and full adhesive curing are recommended. The listed warranty is one year.
