Product Information
| Item |
Details |
| Model Number |
71C62A |
| Compatible Vehicle |
Mercedes Sprinter NCV3/W906 (2007-2018), VS30/W907 (2019-2026) |
| Installation Position |
Right / Passenger-Side Sliding Door |
| Overall Size |
1403x776mm (55.24x30.55in) |
| Material |
6063 Aluminum + 4mm Automotive Tempered Glass |
| Glass Tint |
Privacy Tint, 17% VLT |
| Color |
Black |
| Window Structure |
T-Style Half Slider: Upper Fixed / Lower Sliding |
| Built-in Screen |
Removable Fiberglass Insect Screen |
| Wall Thickness |
25-40mm |
| Installation |
Automotive Urethane Bonding / Trim-Ring Screw Mount |
| Seal |
Triple-layer EPDM Seals + Drainage Channel |
| Glazing Standard |
DOT / ECE R43 |
| N.W./G.W. |
11/12.5kg |
| CTN Size |
140x9x84cm |

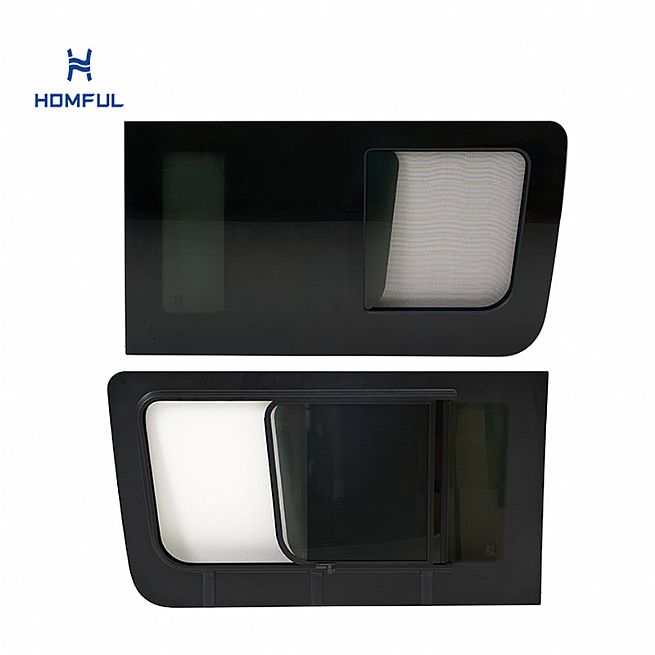

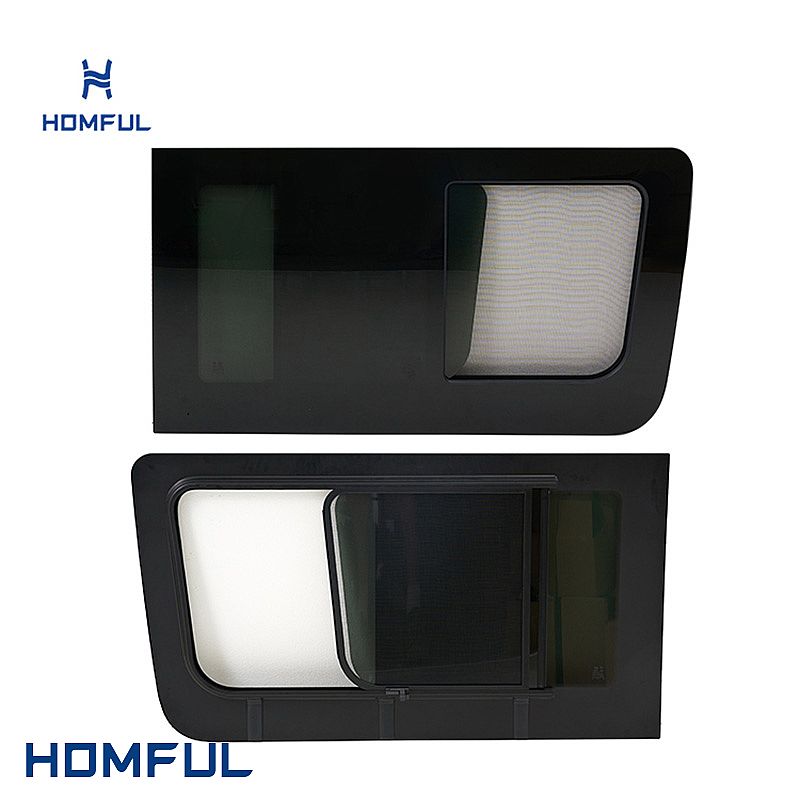

The passenger sliding door sits beside the main living area in many Sprinter conversions, making that position valuable for everyday ventilation. The 71C62A half-slider window adds an opening section without changing the exterior into a projecting awning-style design. The upper glass remains fixed, while the lower section slides across a metal track for partial or wider airflow when the van is parked.

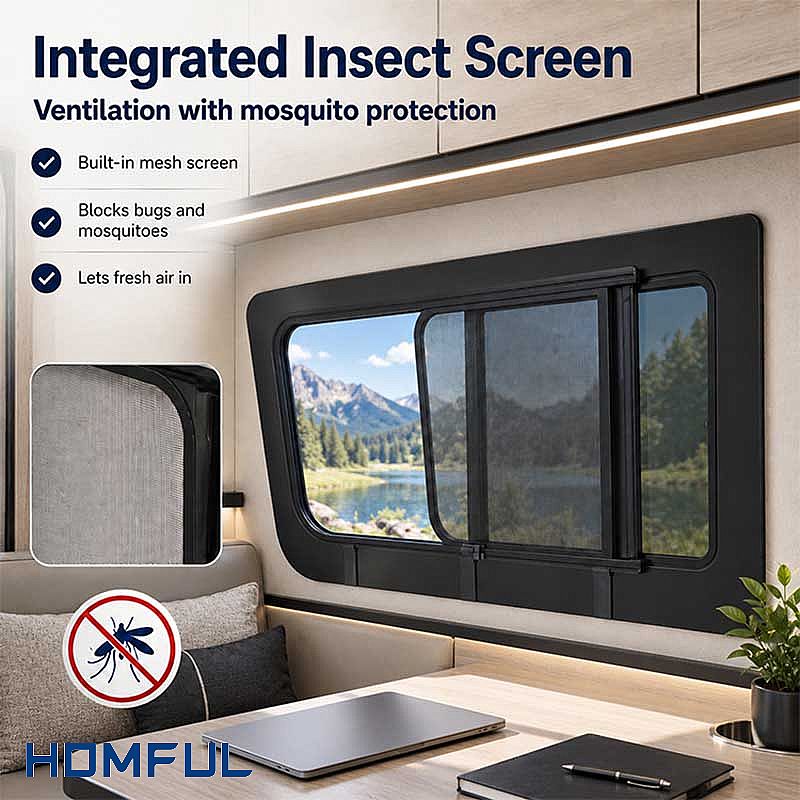

A built-in fiberglass insect screen covers the ventilation opening and can be removed for cleaning. The 17% VLT privacy glass reduces direct visibility into the cabin and keeps a consistent dark appearance across the vehicle. A black ceramic border conceals the installation edge, while the curved aluminum frame follows the Sprinter door profile.

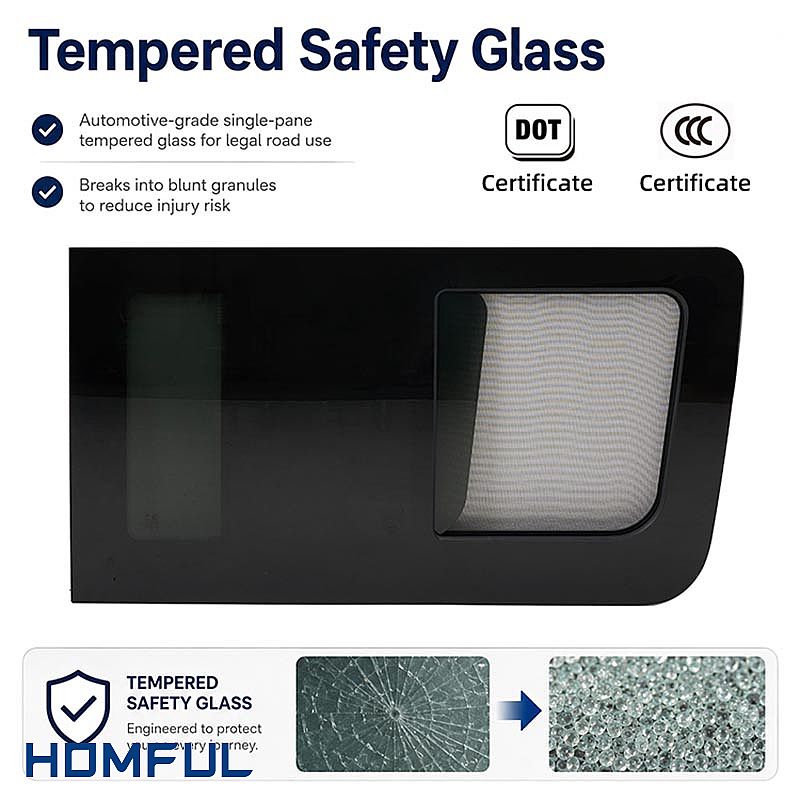

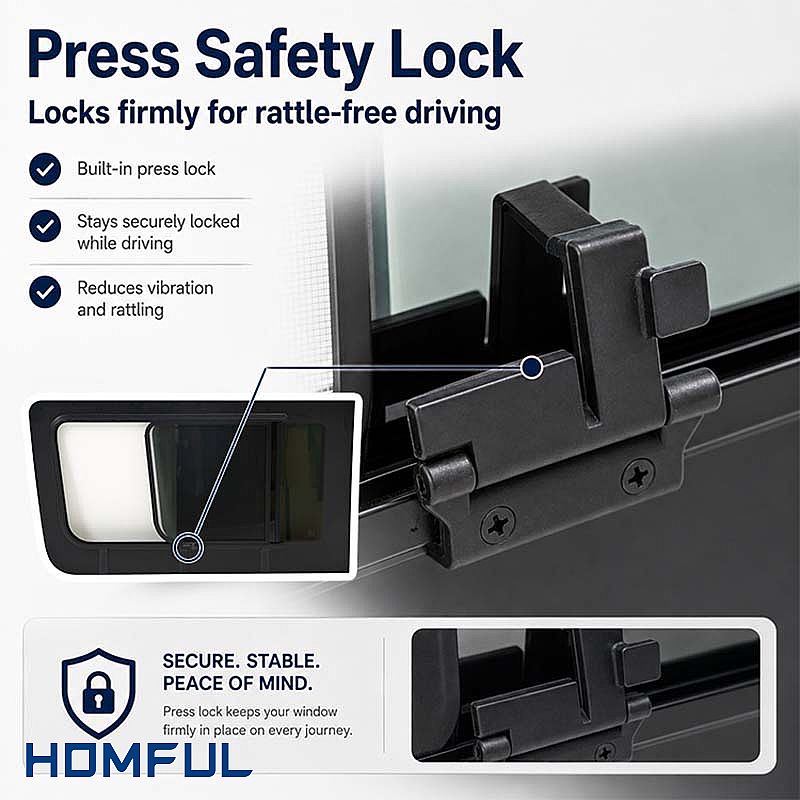

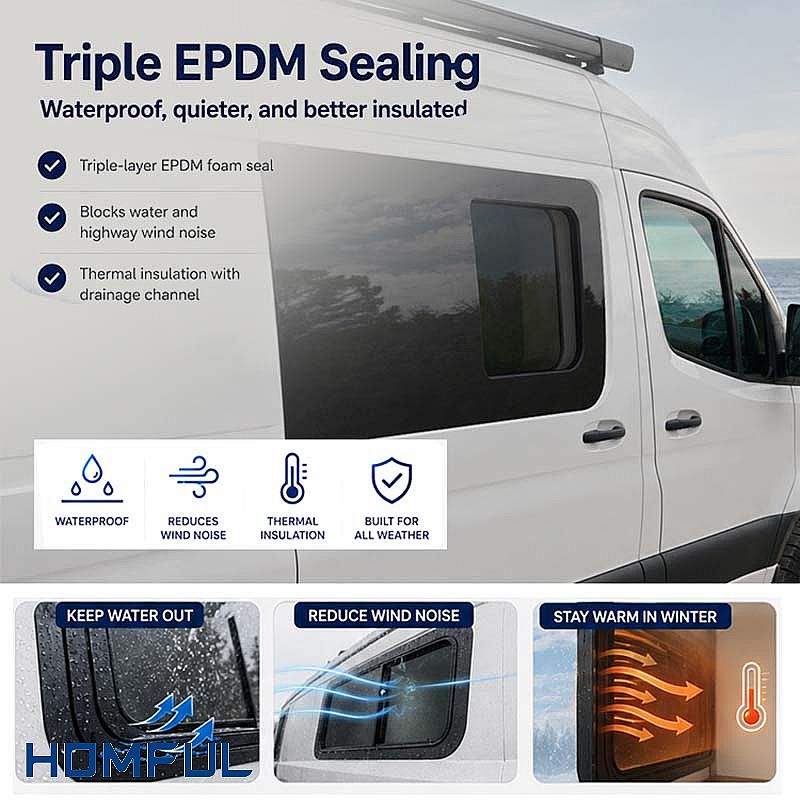

The window assembly uses 4mm tempered glass, a 6063 aluminum frame, triple-layer EPDM seals, an exterior drainage channel, and a press-type lock. These components are intended to limit water entry, wind noise, and movement during normal driving. Two installation approaches are supported in the supplied product information: automotive urethane bonding or trim-ring screw mounting. Professional installers should follow the adhesive manufacturer's curing instructions and verify the finished seal before road use.
Model 71C62A is for the right passenger-side sliding door only and is not interchangeable with the driver-side fixed-panel window. The listed 1403x776mm overall size fits common 2007-2026 Sprinter conversion applications, including 144-inch and 170-inch wheelbases, subject to vehicle and cutout confirmation. OEM buyers, wholesalers, and conversion businesses can request bulk supply, private-label packaging, and project-based customization.
FAQ
Q: Which Mercedes Sprinter models fit the 71C62A window?
A: The listed fitment covers Mercedes Sprinter NCV3/W906 models from 2007-2018 and VS30/W907 models from 2019-2026, including 144-inch and 170-inch wheelbases and low- or high-roof configurations. Confirm the body opening before purchase.
Q: Can 71C62A be installed on the driver side?
A: No. Model 71C62A is made for the right passenger-side sliding door. The driver-side fixed panel uses a different body curve and requires model 71C62B.
Q: Is a bug screen included?
A: Yes. A removable fiberglass insect screen is integrated into the interior opening area for ventilation without insects.
Q: How is the Sprinter sliding-door window installed?
A: The supplied product information lists automotive urethane bonding and trim-ring screw mounting. Installation should be completed according to the selected adhesive or hardware instructions. The listed warranty is one year.
