Product Information
| Item |
Details |
| Model Number |
70A59 Series |
| Product Type |
Tempered Glass Push-Out RV Window |
| Material |
Aluminum + 4mm Tempered Glass |
| Frame / Color |
Black Aluminum Frame |
| Corner Options |
Square Corner / Rounded Corner (R70) |
| Opening Angle |
60 degrees / 80 degrees |
| Wall Thickness |
30-40mm |
| Built-in Features |
Fiberglass Insect Screen + Shade |
| Glazing Standard |
DOT / ECE R43 |
| Seal |
Multi-layer EPDM Seals |
| Packaging |
Foam Corner Protectors + Air Columns + Outer Carton |
| Warranty |
1 Year |
| Model Number |
Product Size |
Corner Options |
N.W. |
G.W. |
| 70A59N |
500x300mm |
Square Corner |
4.2 kg |
4.9 kg |
| 70A59S |
500x300mm |
R70 Rounded Corner |
4.2kg |
4.9kg |
| 70A59O |
500x350mm |
Square Corner |
5 kg |
5.7 kg |
| 70A59T |
500x350mm |
R70 Rounded Corner |
5 kg |
5.7 kg |
| 70A59P |
700x300mm |
Square Corner |
5.8 kg |
6.8kg |
| 70A59U |
700x300mm |
R70 Rounded Corner |
5.8 kg |
6.8kg |
| 70A59Q |
700x450mm |
Square Corner |
7.5 kg |
8.5kg |
| 70A59V |
700x450mm |
R70 Rounded Corner |
7.5 kg |
8.5kg |
| 70A59R |
800x500mm |
Square Corner |
8.4 kg |
9.4kg |
| 70A59W |
800x500mm |
R70 Rounded Corner |
8.4 kg |
9.4kg |

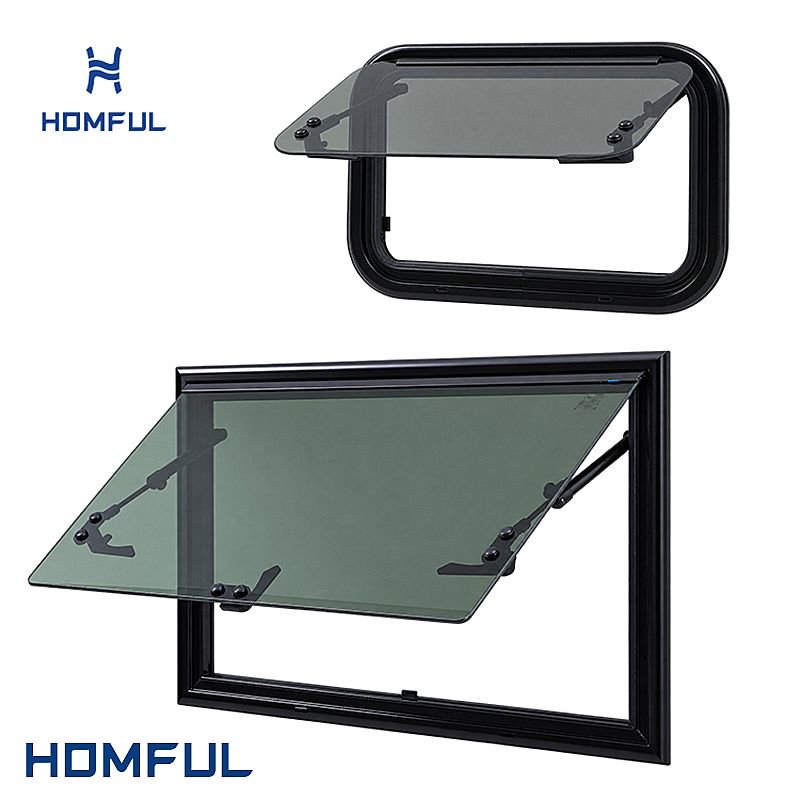

A push-out window is useful when an RV layout needs more airflow than a fixed pane or narrow slider can provide. The 70A59 Series opens outward from the top, exposing most of the glass area for ventilation during cooking, overnight stops, and warm-weather travel. A small opening can also maintain airflow in light rain because the glass panel forms a cover above the opening.

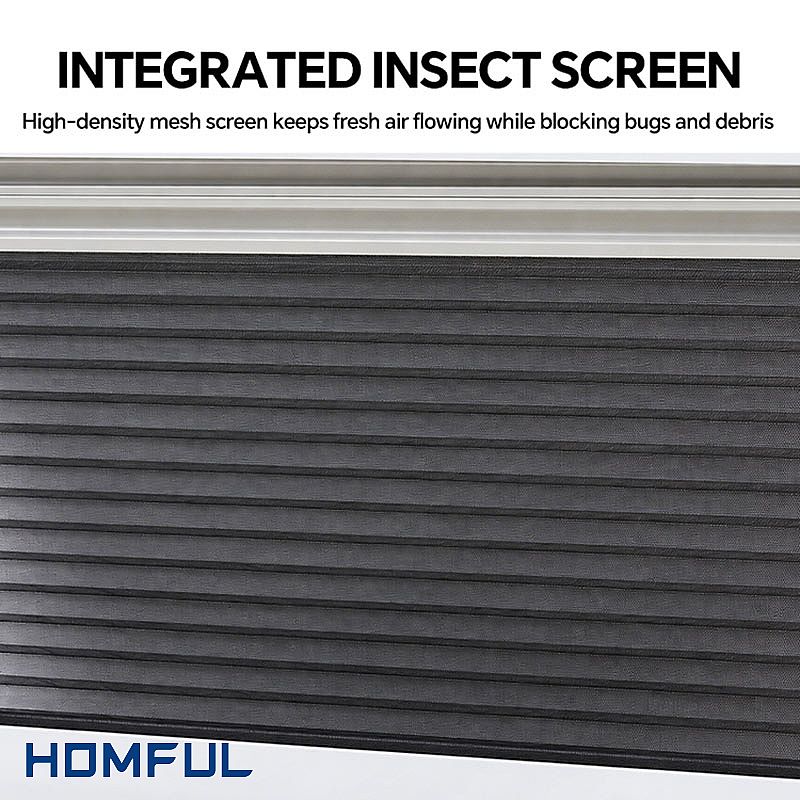

The inner pleated frame combines a fiberglass insect screen with a shade, so the installer does not need to source separate interior accessories. The screen supports bug-free airflow, while the shade helps with privacy and daylight control. Once opened, both sides of the glass remain accessible for cleaning, and the design avoids the deep exterior tracks that commonly collect dust and leaves.

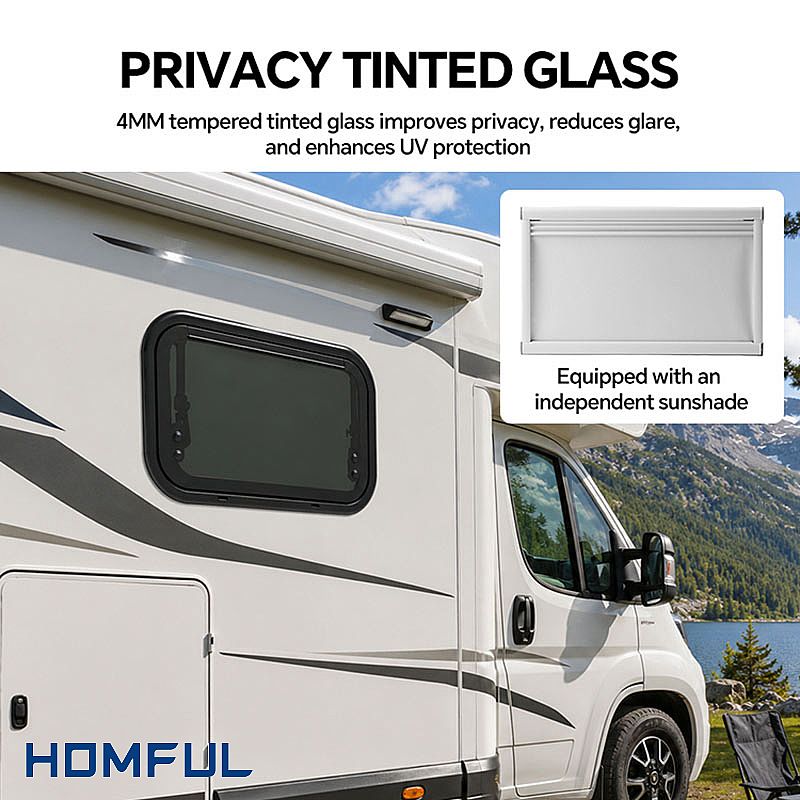

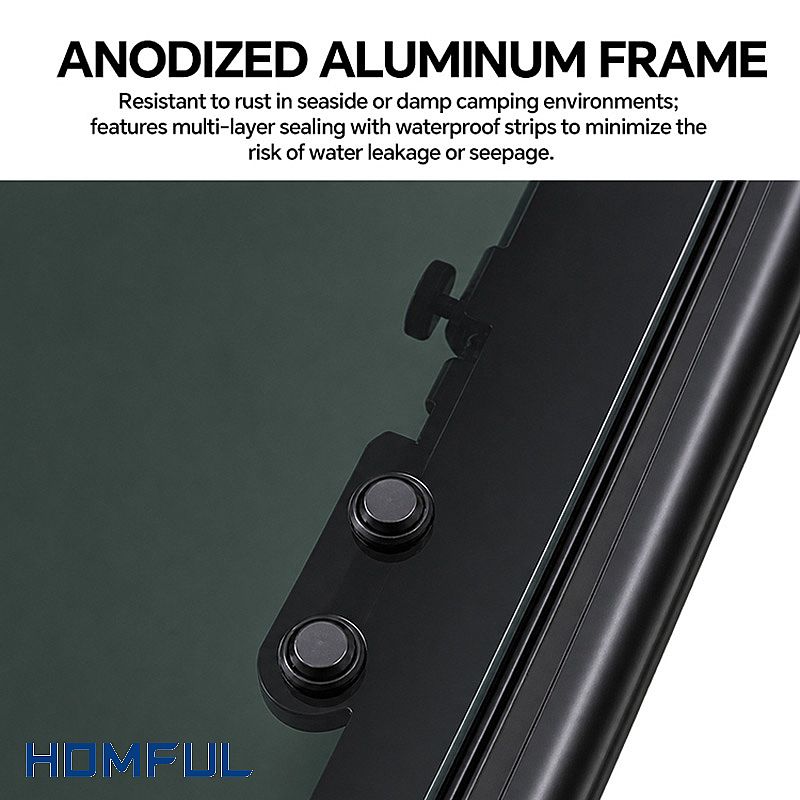

Each model uses 4mm tempered glass, a black aluminum frame, multi-layer EPDM sealing, metal latches, and angle-support hardware. Five sizes are available from 500x300mm to 800x500mm, with square-corner and R70 rounded-corner options. The 500x300mm and 500x350mm models open up to 60 degrees; larger versions open up to 80 degrees. Wall compatibility is 30-40mm.
For OEM RV manufacturers, conversion companies, wholesalers, and replacement-parts suppliers, the 70A59 Series offers one construction across several common sizes. Buyers can consolidate purchasing, select models for different vehicle layouts, and request bulk packaging or private-label customization. Before using any model as an emergency exit, the vehicle builder should confirm the required clear opening, installation position, and local regulations.
FAQ
Q: Is this push-out RV window suitable for emergency exit use?
A: The outward-opening panel provides a large secondary opening and is intended for RV escape-window applications. The vehicle builder should confirm the required clear opening, installation position, and local regulations before designating the window as an emergency exit.
Q: Which sizes and corner styles are available?

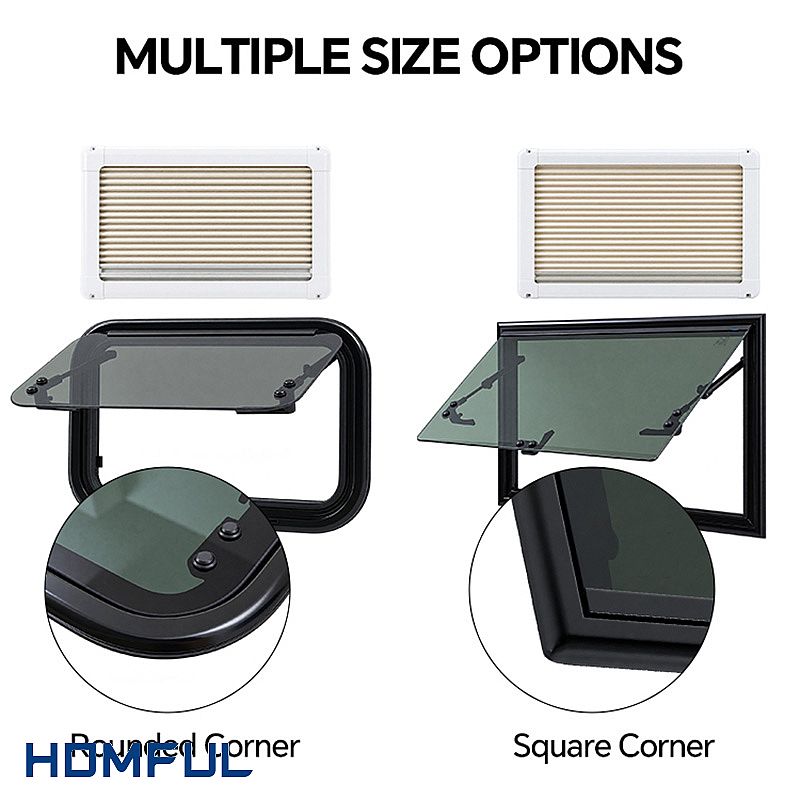

A: The 70A59 Series is available in 500x300mm, 500x350mm, 700x300mm, 700x450mm, and 800x500mm. Each size has a square-corner version and an R70 rounded-corner version.
Q: Does the RV window include both an insect screen and a shade?
A: Yes. The interior pleated assembly combines a fiberglass insect screen and a shade for insect protection, privacy, and daylight control.
Q: Can wholesale buyers request OEM service?
A: Yes. Model selection, bulk supply, private-label packaging, and other project requirements can be discussed for OEM and wholesale orders. The supplied product information lists a one-year warranty.
